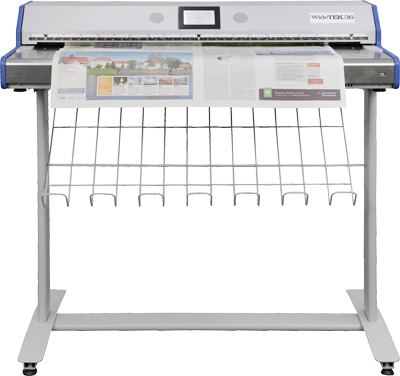

WideTEK® 36 – Quiet & compact wide format color scanner for documents up to 36 inch widths



WideTEK® 36 scans documents up to 36 inches wide (915mm). It is quiet and compact, making it ideal for applications in any office or production environment.It is the fastest high end color scanner with three CCD cameras.



State of the art illumination using bright white LEDs guarantees long lifetime and a low cost of ownership, since there are practically no consumables necessary over the life of the product. Cutting edge camera technology, with a dust-protected, fully sealed camera box holding CCD systems that use a patented stitching procedure, delivers up to 1200 dpi scanner resolution.



Easy to use walk up scanning or mobile scanning with Scan2Pad®



The integrated walk up scanning software makes the scanner a truly shared device. One click of the mouse is enough to either print the scan, send it to any directory in the network or via email, to upload it to the FTP server, or to save it to the USB memory device. Simply walk up, scan and store or send the image, all through the use of the touchscreen.



Scan2Pad® lets you control the WideTEK 36 using an iPad or an Android tablet or even a smartphone running Android version 4.0.3 or higher. Quickly adjust the color depth, go from black & white to grayscale or full color and adjust brightness and contrast on your pad. Create PDF documents from your scans in a single step. Scan2PAD is the unique mobile scanning application that doesn´t require you to use an external cloud server. Simply scan your documents and take them away on your pad. It is fast, secure and best of all, free of charge.



Gentle Scanning of Historical and Fragile Documents



WideTEK® 36 gently scans due to special transport rollers that serve as pressure points ensuring safe document transport. For historical and fragile documents, this is critical.



Automatic document size recognition means that operators are flexible when feeding a source document into the scanner. It is not necessary to exactly center the document on the scan area. With crop and deskew, the resulting image output will be straight, centered and without black borders.



The new and unique background drum does not touch the glass plate at any time, avoiding scratches and document skews. To achieve extra contrast on sepias and film based documents, the standard black drum can be exchanged with a white drum, without needing any tools.



The user operates the scanner either with a standard internet browser or alternatively, via the built-in touchscreen. A monitor directly connected to the scanner can be used for image control or to modify the scan parameters, without a client PC. Using the touchscreen display, up to 30 different password protected jobs can be defined and stored. The jobs contain preconfigured settings such as scan parameters or directories on the network drives.



The exceptionally high scanning speed, dust-protected and encapsulated optical components and the absence of consumables characterize this highly efficient production-ready device. With a life expectancy of over one million scans, the WideTEK® 36 redefines the price/performance ratio in the wide format scanner market.

WideTEK® 36 Technical Data



This section provides you with the technical specifications and data associated with the WideTEK® 36 wide format CCD scanner. Speed, scan size, power consumption as well as shipping dimensions and weight can be found in the detailed summary. These documents are the most detailed summary of the technical specifications.



Technical Data



Document
Maximum Document Size 950 mm (37.4 inch) width. Information about the maximum scan length in the technical specification.
Maximum Scan Width max. 915 mm (36 inch)
Document Thickness max. 3.0 mm (0.1 in.)
Autoformat Size Recognition yes
DIN Format DIN A5 – DIN A0
ANSI Format Legal, US E
User Defined Format yes
Output
Scanner Resolution 1200 x 1200 dpi (optionally 9600 x 9600 dpi interpolated)
Optical Resolution 1200 x 600 dpi
Pixel Dimension 9.3 x 9.3 µm
Paper Path Face up, Front entry, Front or rear exit
Scan Speed Color 200 dpi – 22.9 m/min (15 inch/s)
300 dpi – 15.2 m/min (10 inch/s)
600 dpi – 6 m/min (4 inch/s)
1200 dpi – 3 m/min (2 inch/s)
Scan Speed BW Same as 24 bit Color
Color Depth 48 bit color, 16 bit grayscale
Scan Output 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File Formats Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data
ICC Profiles Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription.
Accuracy
Scan direction ± 0.08% across 36 inch scanning width
Transport direction ± 0.08% with new transport rollers
Technical Specifications
Computer 64 bit Linux, Intel i3, quad core processor,
8 Gigabyte RAM, 320GB HDD for extra large jobs
Touchscreen 7 inch color WVGA (wide VGA) touchscreen
Monitor 22 inch touchscreen with arm (included in the bundle)
USB Port 1 USB Port 3.0
Interface 1 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera 3x Tri-color CCD camera, 67,500 pixels, encapsulated and dust-proof
Light Source Two lamps with 154 white LEDs each, no IR/UV emission
Lamp Life Time 50,000 h (typ.)
Dimensions
Dimensions Scanner
(H x W x D)
228 x 1095 x 507 mm (9 x 43.1 x 20 inches)
Weight Scanner 41 kg (90 lbs.)
Electrical Specifications
Electrical Connection 100-240 V AC, 47 – 63 Hz (external power supply,
complies with ECO standard CEC level V)
Power Consumption < 0.5 W (Sleep) / 5.2 W (Standby) /
< 50 W (Ready to scan) / < 95 W (Scanning)
Ambient Conditions
Operating Temp 5 to 40 °C (40 to 105 °F)
Rel Humidity 20 to 80 % (non-condensing)
Noise < 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
